D link 320 default password. The old horse doesn't spoil the furrow

The DIR-320 model from D-Link is a fairly popular device for creating home wireless network. This router is often recommended by store consultants as one of the most reliable and at the same time inexpensive. In addition, the DIR-320 is used by many providers as a standard router installed by clients when connecting to Internet services.

Typically, the router parameters are adjusted by a specialist invited to install the provider’s cable into the premises. However, there are situations when you have to do it yourself. To ensure that creating a connection does not become an insoluble problem, you need to know how to configure a router d link dir 320.

Installing the router and preparing the system

The router is connected in a standard way. On the back of the router case you can find a number of connectors, among which we are interested in the WAN and LAN ports.

The WAN connector must be equipped with a cable supplied to the premises by the provider; The router is connected to the computer via the LAN connector using the included patch cord.

Preparing the system involves checking the parameters network card and connection properties by local network:

WAN setup

To create a connection to the Internet, you need to get into the router interface. It is available at 192.168.0.1. (authorization pair – admin/admin).

The interface looks standard for D-Link routers with the latest firmware installed:
If you set up the D-Link DIR-615 router or other models of budget home routers from D-Link, you should have already understood all the available sections of the interface. If this is your first experience creating an Internet connection, then you will quickly learn to navigate here.

PPPoE connection

In the “Network” section, open the “WAN” item to open a list of available Internet connections.

If you already have a connection, do not delete it immediately. First and create a new connection. After setting up a new connection and saving the configuration, you can delete the old connection.

Leave the remaining parameters unchanged. Click the "Save" button to return to the list of connections. A light should light up in the notification menu at the top - click on it to update the hardware configuration.

L2TP connection

If you configured the upvel ur 315bn router to connect to Beeline, you probably encountered the need to specify the VPN server address. By the way, this is the only difference between setting up L2TP and PPPoE. Otherwise the procedures are completely identical.

Creating a Wireless Network

Users who have encountered the need to configure Wi-fi router ASUS RT-G32 or any other router knows very well what parameters need to be specified to create a wireless network at home.

At D-Link setup DIR 320 does not change anything in this sense:

Now you can close the router interface and try to search for the created access point from any device that has a Wi-Fi module.

This article will give detailed instructions on setting up the D-Link DIR-320 router to work with the Rostelecom provider. Let's touch on firmware updates and settings PPPoE connections Rostelecom in the router interface, as well as installing wireless Wi-Fi networks and her safety. So let's begin.

Before setting up

First of all, I recommend carrying out a procedure such as updating the firmware. It is not at all difficult and does not require any special knowledge. Why is it better to do this: as a rule, a router purchased in a store has one of the first versions of firmware and by the time you buy it, the official D-Link website already has new ones that fix many errors that lead to broken connections and other unpleasant things.

After all the above steps have been completed, launch any Internet browser and enter 192.168.0.1 in its address bar and go to this address. As a result, you will see a dialog asking for a username and password to enter the router settings. The standard login and password for D-Link DIR-320 is admin and admin in both fields. After logging in, you should see the administration panel (admin panel) of the router, which will most likely look like this:

If it looks different, don’t be alarmed, just instead of the path described in the next paragraph, you should go to “Manually configure” - “System” - “Software update”.

At the bottom, select “Advanced Settings”, then on the “System” tab, click the double right arrow shown on the right. Click "Software Update". In the “Select update file” field, click “Browse” and specify the path to the firmware file that you downloaded earlier. Click Update.

In progress D-Link firmware DIR-320 connection with the router may be interrupted, and the indicator running back and forth on the page with the router will show something completely different from what is actually happening. In any case, wait until it reaches the end or, if the page disappears, then wait 5 minutes to be sure. After that, go to 192.168.0.1 again. Now in the router admin panel you can see that the firmware version has changed. Let's move on to setting up the router.

Setting up a Rostelecom connection in DIR-320

Go to the advanced settings of the router and on the “Network” tab, select WAN. You will see a list of connections, in which one is already present. Click on it, and on the next page click the “Delete” button, after which you will return to the already empty list of connections. Click Add. Now we have to enter all the connection settings for Rostelecom:

• In the “Connection type” field, select PPPoE
• Below, in the PPPoE parameters, indicate the username and password issued by the provider

Essentially, entering some additional settings not required. Click “Save”. After this action, a page with a list of connections will open in front of you again, and at the top right there will be a notification that the settings have been changed and need to be saved. Be sure to do this, otherwise the router will have to be reconfigured every time power is turned off from it. After 30-60 seconds, refresh the page, you will see that the connection has changed from broken to connected.

Important note: in order for the router to establish a Rostelecom connection, a similar connection on the computer itself that you used before must be disabled. And in the future, you also don’t need to connect it - the router will do this, after which it will provide access to the Internet via local and wireless networks.

Setting up a Wi-Fi hotspot

Now let’s set up a wireless network, for which in the same “Advanced settings” section, in the “Wi-Fi” item, select “Basic settings”. In the main settings, you have the opportunity to set a unique name for the access point (SSID), different from the standard DIR-320: this will make it easier to identify it among neighbors. I also recommend changing the region from " Russian Federation“to “USA” - from personal experience, a number of devices do not “see” Wi-Fi with the Russia region, but everything from the USA can be seen. Save your settings.

The next point is to set a password for Wi-Fi. This will protect your wireless network from unauthorized access by neighbors and passers-by if you live on the lower floors. Click "Security Settings" in the Wi-Fi tab.

Specify WPA2-PSK as the encryption type, and enter any combination of Latin letters and numbers of at least 8 characters as the encryption key (password), then save all the settings you have made.

At this point, the wireless network setup is complete and you can connect via Wi-Fi to the Internet from Rostelecom from all devices that support it.

Setting up IPTV

To set up television on the DIR-320 router, all you need to do is select the appropriate item on home page settings and indicate which LAN port you will connect the set-top box to. In general, these are all the required settings.

If you want to connect your Smart TV to the Internet, then this is a slightly different situation: in this case, you just need to connect it with a wire to the router (or connect via Wi-Fi, some TVs can do this).

In order to connect your computer to the Internet, the user needs to configure his router and himself. Only after this will it be possible to easily open various electronic pages of websites and download the necessary information.

Connecting a router

Setting up and connecting the D-LINK DIR-320 router begins with checking the functioning of important network nodes on the router itself and the computer.

To get started, you need to do the following:

If everything is done correctly, then you can start setting up the router itself and the connection.

Login to settings via web management

Before you start setting up D LINK DIR 320, you need to check the operation of network devices.

To do this, you need to perform the following procedure:

1. go to start and select the “control panel” option;
2. In the window that opens, you need to log in to the shortcut link “Network and Sharing Center” shared access"or "Network and Internet", and then - "Network and Sharing Center";



3. open the option “Change adapter settings”;



4. Click on the “Local Area Connection” shortcut with the right mouse button;



5. if the “connect” option appears in the operational window, then click on it, if disconnect appears, then simply close the operational window;
6. then you need to open properties in the same operational window to open a new window;
7. in the new window, select the line “Protocol ... 6” and click on the “properties” option and in the next window select the option automatic settings;
8. perform the previous operation in a similar way, but with the line “Protocol ... 4”.

These steps are necessary to prepare automatic configuration wifi router d-ink dir 320 and local network.

After setting up a local connection, you need to launch the disk included with the router. It is necessary to create local connection to the Internet and settings of the router itself. This is done according to the prompts that pop up in the installation window.

Particular attention should be paid when choosing the connection technology parameter - pppoe or l2tp. You should choose a connection format in accordance with the parameters specified in the Internet connection agreement.

The next step is configuration via the web interface. To do this, you need to type the IP address 192.168.0.1 in your Internet browser.

The login and password are in the instructions, which the system will prompt you to change after logging in.

After changing the login and password, an interface will appear on the screen in which all connection parameters will be indicated, including all possible settings parameters based on the provider’s technology.

Firmware update

The standard router kit includes a disk with software necessary for the correct operation of the network device, but this does not guarantee the uninterrupted and correct functioning of the D-LINK DIR-320.

How to configure and install latest version required drivers?

Update software for the D-LINK DIR-320 router only passes through home internet pages – 192.168.0.1. This procedure should be carried out immediately after installing the basic software from the disk by following the link “ftp://dlink.ru/pub/Router/DIR-320_NRU/Firmware/”. Download and save the file to your desktop.

Thus, the path to the file is set, on the basis of which the router software will be updated. When carrying out this operation, you cannot turn off and restart the computer before it is completed, otherwise a failure may occur and you will have to start installation and configuration from the very beginning.

When the update is complete, the DIR-320 will reboot.

Setting up the D-LINK DIR-320 router from providers

The providers themselves often take advantage of the information weakness of users, most of whom are simply afraid to get into the hardware and figure it out on their own. In this regard, it is always possible to call an appropriate specialist to your home to carry out the appropriate work on setting up the Internet.

For example, you can order setup of the D-LINK DIR-320 router from Rostelecom by dialing the technical support number. The operator will listen to all your problems and offer a convenient time to call a company specialist at your home.

In fact, all these steps are simple, and you can do them yourself without additional expenses.

To do this, you must adhere to the following sequence:

This sequence of setting up an Internet connection is applicable to the operating room. windows system 7 and 8.

Setting up for Rostelecom

To configure the D-Link DIR-320 router on the Rostelecom provider network, the user must go to home page router (192.168.0.1) and perform the following steps:

1. in the tab on the main page, select the “network” tab;



2. click on the “Wan” option;
3. the Wan connection setup wizard will appear in the updated window;
4. when selecting the connection type parameter, select “pppoe”;



5. click on the “next” option;
6. in the updated window, indicate the name of your network (it can be arbitrary), username and password (specified in the contract);
7. then click “next” and “apply”. The parameters are saved in full and displayed in the updated window;



8. after which we proceed to setting up a wireless connection using the dir320 router, where the name of the wireless network and password for entering it are indicated (indicated arbitrarily, but in accordance with the instructions of the router) and save



Setting up for Beeline

Setting up the D-LINK DIR-320 router for the Beeline provider differs from Rostelecom, because they use the connection type "l2tp".

So the user's actions should look like this:

If everything is done correctly, the user will be able to freely use the Internet.

Setting up for MTS

Connection to the Internet from the MTS provider uses pppoe technology.

Therefore, setting up the router D-Link dir 320 will be held as follows:

1. checking the operation of the network device;
2. go to the home page of the router in the Internet browser 192.168.0.1;
3. install drivers;
4. update drivers;
5. go to the “network” tab and select the “connections” line;
6. in the window that opens, select the “add” option;
7. connection type is set to “pppoe”;
8. check the “allow” box;
9. in the line “physical interface” set the parameter “port5”;
10. in the user name and password lines we enter the corresponding data from the agreement with the provider;
11. in the “NAT” and “firewall” lines, check the boxes;
12. save the parameters and configuration.

Video: Setting up a D-Link dir router

Setting up Megafon

Internet from Megafon is mainly provided using 3G technology. Therefore, all settings are set manually:

1. go to the router page 192.18.0.1;
2. select the “Internet installation” column;
3. in the updated window at the bottom, select the option “set up an Internet connection manually”;
4. in the window that opens, select the connection type “3 GUSB adapter”;
5. in the fields of login, password and dial number in accordance with the parameters issued by the provider under the contract;
6. save the parameters.

Wireless connection

Network operation via the wi-fi module of the DIR-320 router is very simple and convenient. To set up a wireless connection, just follow the prompts during the initial installation of the driver on the router. If a corresponding message appears during the installation process, you should set the recommended parameters according to the prompts.

The main attention should be paid to the settings of the network card on the computer to support a wi-fi connection. In this case, you need to go to the control panel, and in it select the network and sharing center. Next, enter the option to change adapter properties and check the status wi-fi works module. If everything works, then the connection to the Internet will occur immediately and without delay.

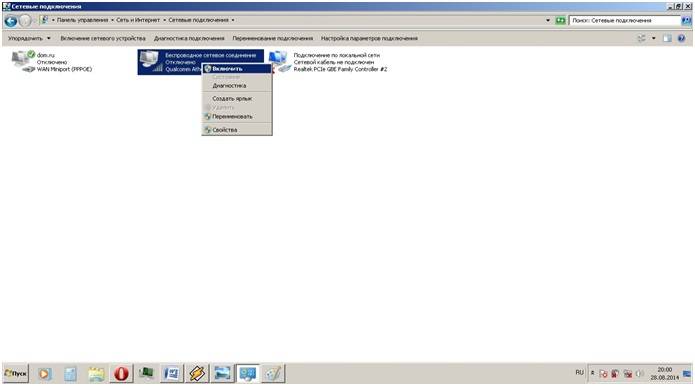

Wi-Fi connection settings in Windows 7

If the connection to the Internet does not occur automatically, and this only happens when using older versions of D-LINK DIR-320(b1) or operating system windowsxp, then you will need manual setting. To do this, you need to go into the settings of the wireless connection adapter and manually set the IP and DNS address. In this case, the IP address will correspond to the router address, and the submask (dns) will be 255.255.255.0.

Next, the user must create a new connection without changing the parameters. You only enter your login and password information to connect to the Internet, and a shortcut is created on the desktop, when opened, a direct connection occurs.

So to carry out full customization your D-LINK DIR-320 router, you need to:

• carefully read the instructions for the router;
• check the operation of the network card and local network settings on the computer;
• install drivers and configure the connection according to the prompts during the installation process;
• update drivers to the latest version.

Experienced users can easily cope with such a task, but for beginners it will be difficult. But if they configure their router strictly in accordance with the indicated order, then the result will not be long in coming.

>

If you purchased a new router or moved to a new place of residence with old equipment, then most likely you will need to configure the d link dir 300 Rostelecom router. This process is not as complicated as it seems at first glance. In this article we will prove this and consider all the stages of this procedure, as well as setting up the d link dir 320 Rostelecom router.

• Preparing the router


• Setting up a router dir 300 Rostelecom - old firmware


• New firmware and work with the dir 320 model


• Enabling WiFi protection


• Conclusion

cost of Interactive TV from Rostelecom.

How to connect Interactive television via a router, you can read here.

After successfully logging into the main interface, the router will most likely prompt you to change the standard password to your own. We enter the invented combination of characters in two fields, confirm and go through authorization again, but with new data. If everything is done correctly, you will see the main menu in the form of blue “buttons” of a fairly large size.

To start setting up the network, perform the following operations:

• click on the first (lower left) button of the second line “Configure manually”;


• In the top text menu, select “Network”;


• open an existing “WAN” connection;


• Scroll down the page and click “Delete” in the lower right corner;


• wait until the page refreshes, the “Add” button appears on the right, click on it;


• on the settings page that opens, specify the type of Internet connection – PPPoE;
  we do not touch the port;


• choose any name (this is what your connection will be called in “ Network connections"on the computer);


• Below we indicate the login from the agreement with Rostelecom, as well as the password;


• save the changes made, then click “Save” again in the center of the page.

At this stage, we put aside the Rostelecom agreement and check the settings of the dir 300 router - go to any page on the Internet. It should open without problems. All that remains is to configure the wireless network. To do this:

• open the WiFi menu item (located next to “Network”);


• in the SSID field, enter any name for your network and move on;
  to set a password, save the changes and select from the available WPA2-PSK options;


• Enter the password you created and save again.

That's all, the connection and wireless network are ready to go.

How to disable the Gudok service.

About transferring subscribers mobile operator Rostelecom on Tele-2 can be read here.

From this article you learned how to configure the dir 320 router for Rostelecom, as well as its previous model, and these instructions should work in most cases. If you have such a typical problem as the web interface being unavailable via IP (that is, the browser does not open the authorization page after entering the combination 192.168.0.1), then again go to the Internet protocol properties (where we set automatic IP/DNS acquisition) and switch network for working with static data. In the fields that become active, indicate:

• 168.0.12;


• leave unchanged (should fill in automatically);


• 168.0.1;


• DNS data from the contract;


• also stated in the contract.

After applying these changes, the login page should become accessible. If you still have questions, watch this video:

And that's all. Tell us about your experience connecting to the Internet. Any questions in the comments are welcome!
